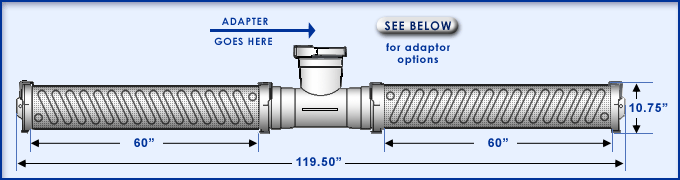

T500
PART #SUPR303000
Rated Capacity: 500 GPM
Weight: 78 lbs. (without adapter)

  Assembly includes the following:


PART NUMBER

DESCRIPTION

QTY.


  SUPR995000 250 Body Assembly (10”diameter x 60”long, 500GPM capacity) 2
  SULV002450 10” Clamp with Mounting Tab 2
  CLBL660008 8” Clamp with Mounting Tab 1
  SULV002465 10” O-Ring Set 2
  SULV002492 8” O-Ring (Single) 1
  SULV001020 10” Tee with 8” Outlet and Lift Strap 1





ADAPTER OPTIONS: Select the adapter below to accommodate your existing line.





Compression Adapter


Companion
Flange Adapter


Footvalve Adapter



PART NUMBER

COMPRESSION ADAPTER

QTY.
  SULV000990 5” Compression Adapter 1
  SULV001000 6” Compression Adapter 1
  SULV001005 8” Compression Adapter 1


PART NUMBER

150 lb. COMPANION FLANGE ADAPTER

QTY.
  SULV001850 5” Companion Flange Adapter 1
  SULV001900 6” Companion Flange Adapter 1
  SULV001950 8” Companion Flange Adapter 1


PART NUMBER

FOOTVALVE ADAPTER (with & without Footvalve)

QTY.
  SULV001300 5” Footvalve Adapter (without the Footvalve) 1
  SULV001400 6” Footvalve Adapter (without the Footvalve) 1
  SULV001500 8” Footvalve Adapter (without the Footvalve) 1
  SULV001510 5” Footvalve Adapter WITH a SFV5, 45Ί Footvalve 1
  SULV001520 6” Footvalve Adapter WITH a SFV6, 45Ί Footvalve 1
  SULV001530 8” Footvalve Adapter WITH a SFV8, 45Ί Footvalve 1


Other special order adapters are available. Call for a quote.
